20W portable fibre laser marking machine front view South Africa

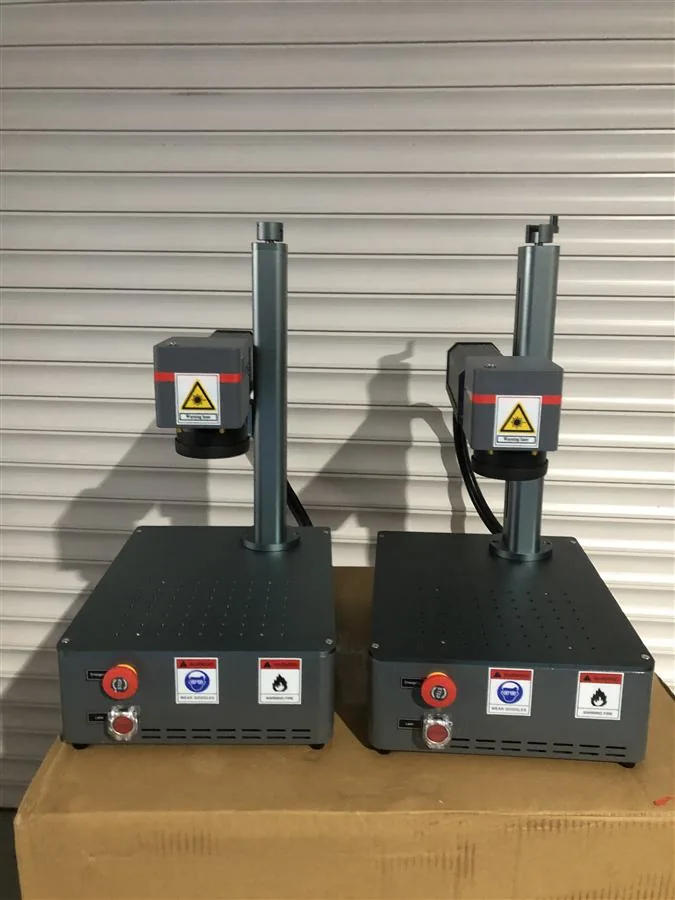

Portable fibre laser marking machines overview

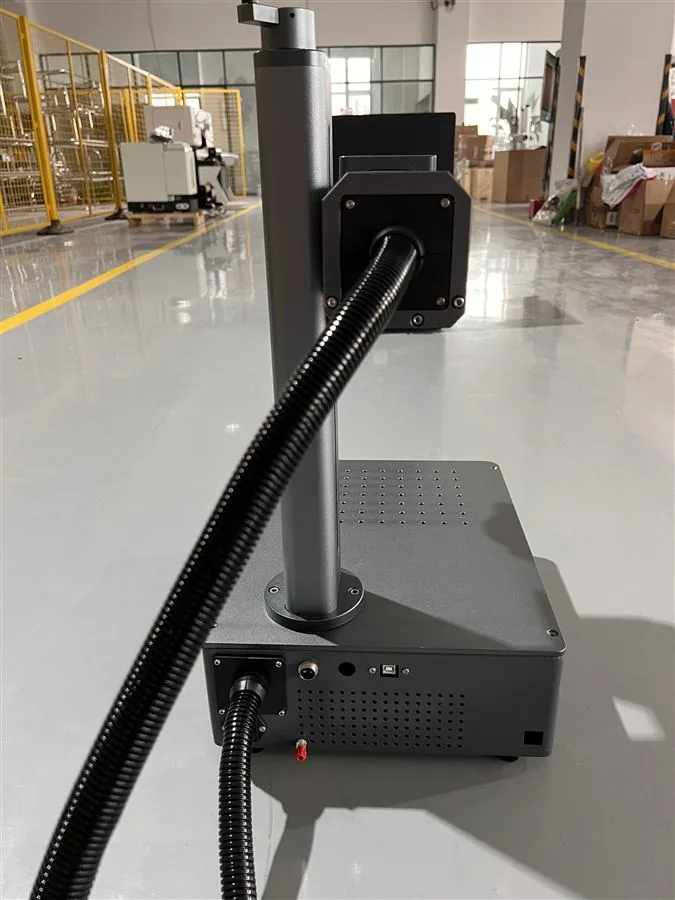

Fibre laser marking machine rear panel connections

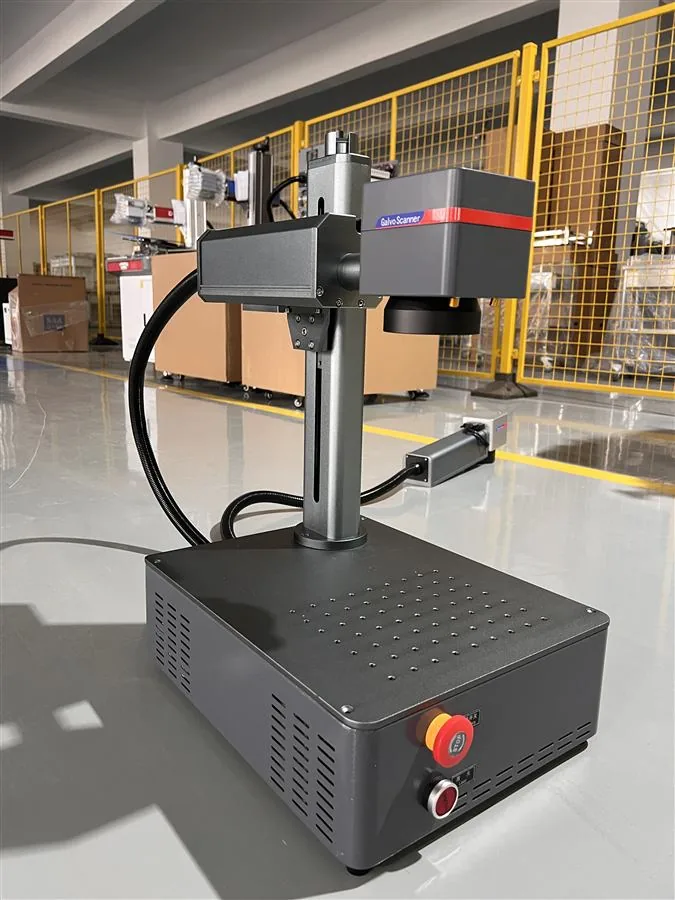

Sino galvo scanning head and lens assembly
Portable fibre laser marking machine front view
Laser Marking & Engraving Machinery

20W Portable Fibre Laser Marking Machine

Nominal 20W  ·  JCZ Ezcad 2  ·  Imported from China  ·  Delivered in South Africa

Professional desktop fibre laser marking machine with 20W nominal output, JCZ Ezcad 2 control system and Sino galvo scanning lens. Marks metals, stainless steel, aluminium, anodised surfaces, plastics and coated materials at up to 7,000 mm/s with ±0.001 mm repositioning accuracy. Minimum character size of 0.15 mm makes it ideal for serial numbers, barcodes, QR codes and logos. Air-cooled, compact desktop unit with eye protection glass, USB interface and a 2-year warranty. Free delivery to one address in Johannesburg.

Metal Marking Engraving Manufacturing Jewellery Industrial Desktop Unit
Specifications
Laser Power
20W Nominal
Work Area
110 × 110 mm
Control System
JCZ Ezcad 2
Marking Speed
≤7,000 mm/s
Wavelength
1064 ± 5 nm
Min Character
0.15 mm
Repositioning Accuracy
±0.001 mm
Laser Source Life
100,000 hours
Cooling
Air Cooled
Interface
USB
Power Supply
220V / 1PH / 50Hz
Gross Weight
30 kg
Mode of Operation
Pulsed
Warranty
2 Years
Available Power Options
20W
Portable Fibre Laser
R55,430 incl. VAT
This Model
30W
Portable Fibre Laser
R57,960 incl. VAT
Higher Power
50W
Portable Fibre Laser
R57,960 incl. VAT
Maximum Power
60W
MOPA Portable Fibre Laser
R94,875 incl. VAT
MOPA Colour
Product Details

Key Features

  • High-Speed Precision Marking — Marks at up to 7,000 mm/s with ±0.001 mm repositioning accuracy — ideal for serial numbers, barcodes and fine decorative work on high-volume production runs.
  • JCZ Ezcad 2 Control — Industry-standard Ezcad 2 supports DXF, PLT, AI, BMP, JPG and more. Intuitive interface for text, barcodes, QR codes and graphics — no specialist training required.
  • Sino Galvo Scanning Lens — Sino galvo lens delivers M² beam quality below 1.6, 6–8 mm beam diameter and beam ellipticity above 90% — consistent marking across the full 110×110 mm field.
  • 100,000-Hour Laser Source — The fibre laser module is rated for 100,000 operating hours. Air-cooled for low maintenance, with a 2-year warranty on the complete unit.

Suitable For

  • Metal Part Manufacturers
  • Jewellery Engravers
  • Electronics Manufacturers
  • Medical Device Makers
  • Automotive Parts Workshops
  • Awards & Promotional Items
  • Tool & Die Makers
  • Firearms Engravers
  • Packaging & Label Marking
  • PCB & Electronics Traceability
Pricing & Delivery
20W Portable Fibre Laser Marking Machine
Sea Freight
Qty—
Unit Price—
Sub Total—
VAT (15%)—
Total—
sea freight on request
20W Portable Fibre Laser Marking Machine
Air Freight
Qty1 unit
Unit PriceR48,200
Sub TotalR48,200
VAT (15%)R7,230
TotalR55,430
Total Lead Time12–15 working days
door to door, incl. customs
Payment Terms
100% payment on order
Price Validity
10 working days
Notes
Terms & Conditions
Estimated lead times are indicative only. As an import order, Storm media is not responsible for delays caused by production, freight, customs or any party outside our control, and late delivery does not entitle the buyer to cancellation or compensation. Import orders are placed to order — deposits and payments are non-refundable and orders cannot be cancelled once placed. While every effort is made to ensure accuracy, Storm media accepts no liability for typographical errors, pricing errors or specification changes by the manufacturer. Prices are subject to the exchange rate at the time of invoice.
Ready to Order?
Contact us to confirm your order and chosen freight method. Price is subject to exchange rate at time of invoice.
