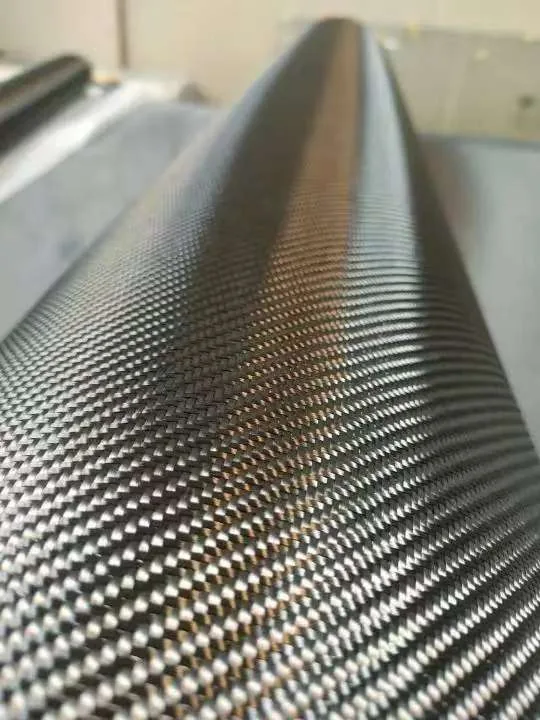

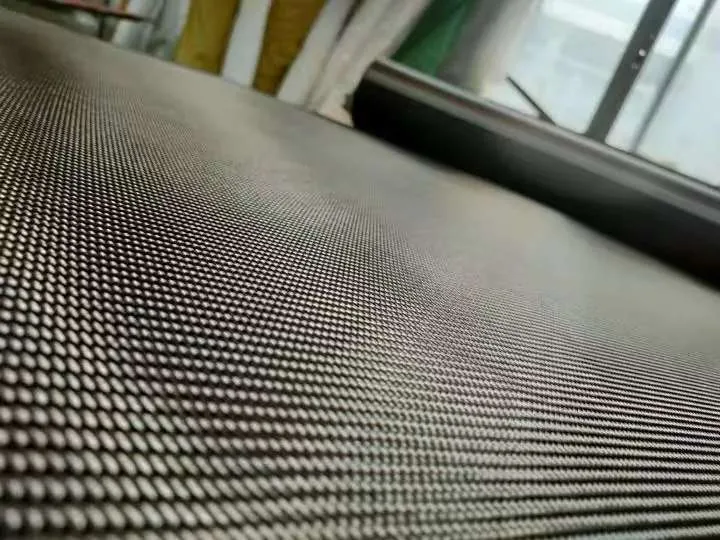

Professional 200 gsm 2/2 twill carbon fibre prepreg with a toughened, halogen-free, medium-temperature epoxy resin system pre-impregnated into a balanced bi-directional weave. Suitable for vacuum-bag-only (out-of-autoclave) processing or in-autoclave cure. Designed for UAV fuselages, aerospace auxiliary components, lightweight structural parts and high-performance composite tooling — imported from China to South Africa with door-to-door delivery anywhere in SA.
Fabric
2/2 Twill Carbon
Areal Weight
200 gsm ±3%
Resin Content
42% ±3% (by weight)
Roll Width
1,000 mm ±10 mm
Roll Length
100 m per roll
Roll Weight
48 kg per roll
Carbon Fibre
PAN-based, high-strength, 12K continuous yarn
Vacuum Cure
120 °C / 90 min · -0.09 MPa
Autoclave Cure
135 °C / 60 min · 0.6 MPa
Post-Cured Tg
≥128 °C
Service Temp
-55 to +95 °C (peak 110 °C)
Lead Time
~17 working days (air)
Per Roll
Sea Freight
Excl. VATR 106,560.00
VAT (15%)R 15,984.00
TotalR 122,544.00
Delivery: 55–69 working days door-to-door
Per Roll
Air Freight
Excl. VATR 117,680.00
VAT (15%)R 17,652.00
TotalR 135,332.00
Delivery: 17–24 working days door-to-door
Min Order
1 roll (1 m × 100 m = 100 m²)
Payment Terms
100% payment on order
Price Validity
10 working days (subject to exchange rate)
Delivery
Sea or air freight — door to door in South Africa
Ready to Order?
Contact us to confirm your order and chosen freight method. Sample rolls (1 m × 10 m) available on request. Price is subject to exchange rate at time of invoice.
UAV / Drone FuselageAerospaceComposite ToolingLightweight StructuresVacuum Bag (OOA)Autoclave
Key Features
🪄
Pre-Impregnated Epoxy
Toughened, halogen-free, medium-temperature epoxy resin (Dicyandiamide + Imidazole accelerator) is already infused at 42% ±3% — no separate resin, no mess. Gel time 15 ± 3 min at 120 °C.
🛡
Vacuum Bag or Autoclave
Cures fully in vacuum bag at 120 °C / 90 min, or autoclave at 135 °C / 60 min under 0.6 MPa. Compatible with low-cost OOA workflows and high-quality structural laminates.
💪
High-Strength PAN Fibre
12K continuous PAN-based high-strength carbon yarn in a balanced 2/2 twill weave. Cured tensile strength ≥630 MPa, flexural ≥720 MPa, short-beam shear ≥88 MPa — equal warp and weft properties.
❄
Long Shelf Life
6 months ambient at 23 °C, up to 12 months frozen at -18 °C. Each roll ships sealed under blue PE release film with COC certificate, batch traceability and 76 mm kraft core packaging.
Suitable For
UAV & Drone Manufacturers
Aerospace Auxiliary Components
Composite Tooling Workshops
Motorsport & Performance
Marine & Watersport
Lightweight Structural Parts
Radome & Antenna Housings
Composite Research Labs
