Home/Products/Semi Automatic Cartridge Filling & Capping Production Line
▶
Machinery & Equipment · Filling & Capping
Semi Automatic Cartridge Filling & Capping Production Line
Imported from China · Delivered & Installed in South Africa
Complete 2-machine production setup for filling and capping caulking cartridges with high-viscosity polyurethane, silicone and sealant compounds. Servo motor controlled filling ensures precise, consistent fill volumes. Paired with a 200L hydraulic press material machine that feeds compound directly from your drum. Single operator. PLC touch screen control. CE certified. ISO 9001:2015. Delivered, installed and commissioned at your premises in South Africa.
Turnkey LineSealant FillingServo + PLCCE / ISO 9001Installed & Commissioned
Specifications
Documentation
English manual + setup video
Filling Speed
10 – 25 pcs/min
Filling Volume
100 – 300ml adj.
Voltage
380V 3-phase 50Hz
Drive System
Servo Motor + PLC
Machine Material
SUS304 Stainless
Press Machine
200L · 14MPa · 60T
Operators Required
1 person
Certifications
CE · ISO 9001:2015
What's Included
Machine 1 — Filling & Capping Unit
English Manual & Setup Video Included — the machine ships with a full English operating manual and a setup video walking through installation and first run. Some control panels carry the original Chinese legends alongside the English ones, so the manual maps every button and setting — you are not left guessing at a keypad.

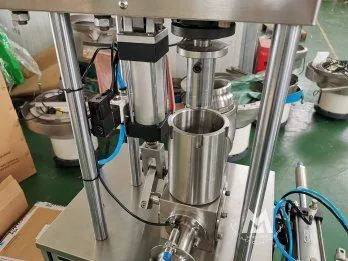

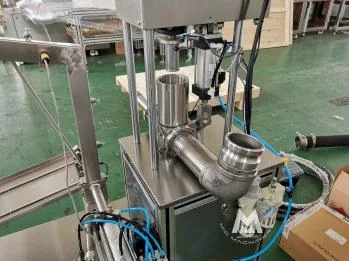

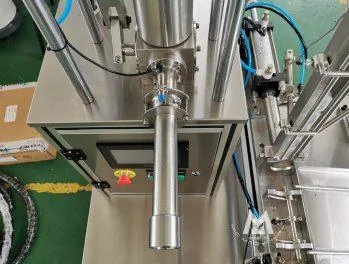

Semi-automatic servo motor controlled filling head

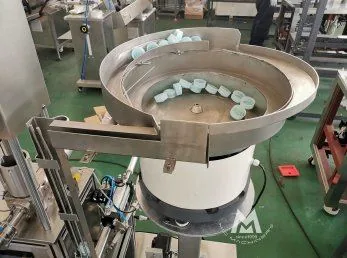

Vibrating tray for automatic cap loading and sorting
Air cylinder capping sealing device
PLC + touch screen control panel
Emergency stop button
Suitable for cartridges ø40–50mm, length 150–230mm
One set of consumable spare parts included

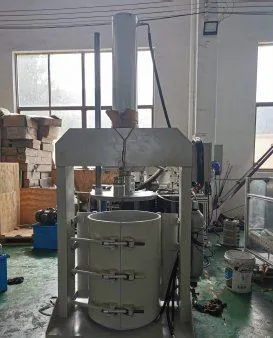

Machine 2 — 200L Press Material Unit
Hydraulic pressure feeder for high-viscosity compounds
Feeds directly from customer's 200L drum
0–20MPa adjustable pressure range
60 tonne total pressure
4KW motor · 80L oil tank
Top discharge · 3-inch (76mm) outlet
Vacuum degassing compatible
Delivery & Installation
Sea freight DDP — all duties and customs clearance included
Wooden export crating
Delivery to your premises in Johannesburg
On-site installation by manufacturer's engineer
Full operator training included
Machine pre-tested with your product before dispatch
Warranty & After-Sales
Lifetime warranty on the machine
Free replacement parts for the first year
24-hour fault response within warranty period
Ongoing spare parts availability guaranteed
English manual included
Online commissioning support available
Site Requirements
Before Commissioning
Compressed air supply: 5–8 kg/cm²
Electrical supply: 380V 3-phase 50Hz
Product compound ready in 200L drum
Cartridges and caps available for testing
Suitable For
Polyurethane sealant and adhesive manufacturers
Silicone compound producers
Acrylic and construction sealant packaging
Any high-viscosity single-component compound
Pricing & Delivery
Semi Automatic Cartridge Filling & Capping Production Line
Sea Freight — Delivered & Installed
Complete Production Line (2 machines)R 637,500
VAT (15%)R 95,625
Total (incl. VAT)R 733,125
IncludesDelivery JHB · install · commissioning
Production / Shipping35 days / 55 days
Total Lead Time~90 days
sea freight DDP · installed & commissioned
Semi Automatic Cartridge Filling & Capping Production Line
Air Freight
Qty—
Total—
sea freight production line
Payment Terms
70% deposit to confirm order, balance before dispatch
Price Validity
10 working days
Notes
Turnkey: includes delivery to your premises in Johannesburg, on-site installation, commissioning and operator training. Machine pre-tested with your product before dispatch. Lifetime warranty on the machine; free replacement parts for the first year.
Terms & Conditions
Estimated lead times are indicative only. As an import order, Storm media is not responsible for
delays caused by production, freight, customs or any party outside our control, and late delivery
does not entitle the buyer to cancellation or compensation. Import orders are placed to order —
deposits and payments are non-refundable and orders cannot be cancelled once placed. While every
effort is made to ensure accuracy, Storm media accepts no liability for typographical errors, pricing
errors or specification changes by the manufacturer. Prices are subject to the exchange rate at the
time of invoice.
Ready to Order?
Contact us to confirm your order and chosen freight method. Price is subject to exchange rate at time of invoice.
Sealant and adhesive manufacturers across Southern Africa run lines like this one. We deliver and quote into South Africa, Namibia, Botswana, Mozambique and Zimbabwe. Namibia and Botswana sit inside SACU with South Africa, so nothing you buy from us picks up a second round of customs duty on the way through. Mozambique and Zimbabwe clear separately and we build that into the delivered price. Commissioning support is arranged the same way regardless of which side of the border the line is going.
